PatreonTimingPlugin

该插件允许你为每条赛道定义多个计时路段。对于 SRP 这类客户端不加载 AI 行驶线路的大型地图非常有用。
附带基于 AssettoServerHub 的排行榜。

备注

需要强制最低 CSP 版本 0.1.77 (1937)，并且在 extra_cfg.yml 中设置 EnableClientMessages: true！

如何创建检查点​

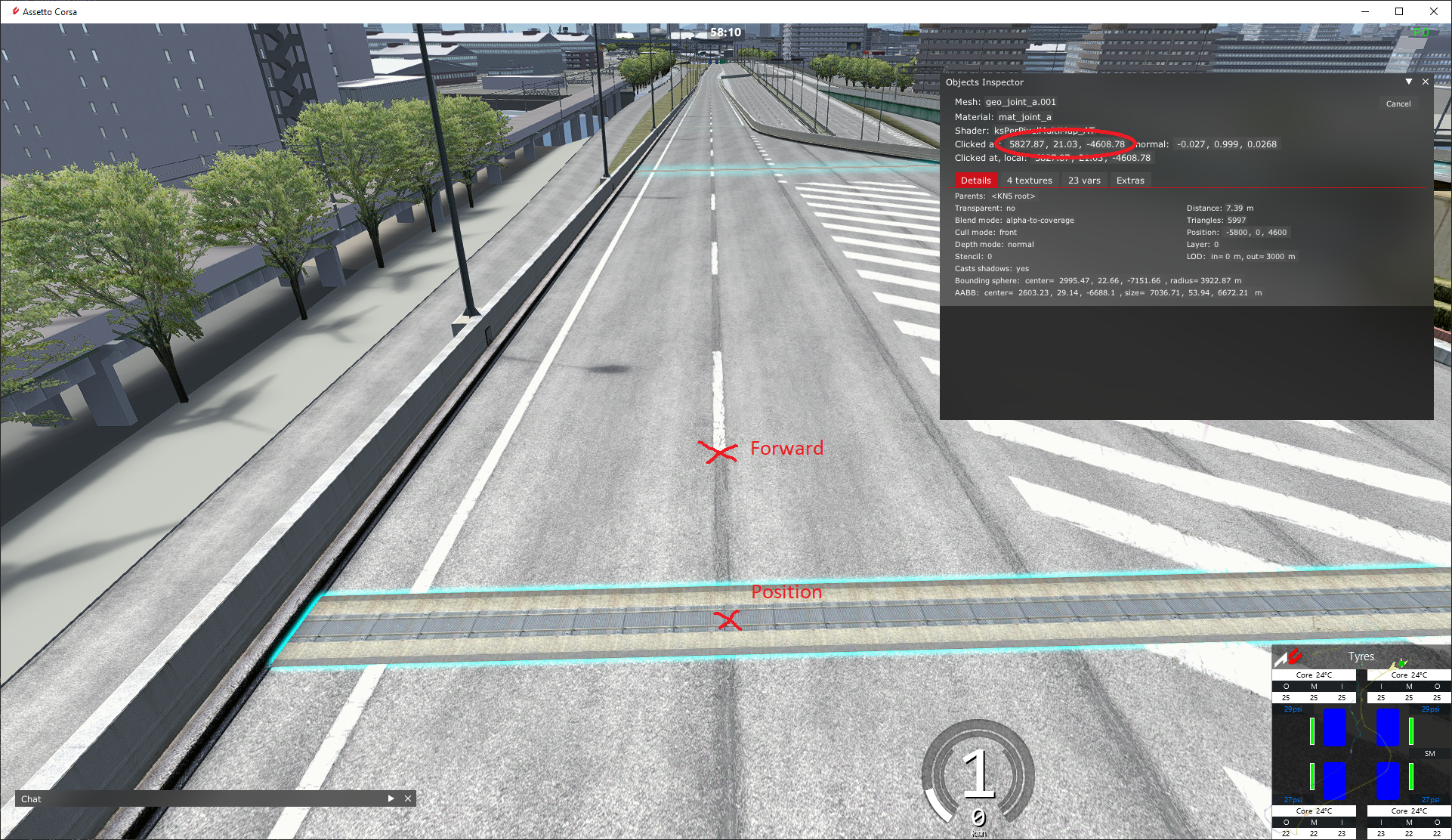

每个检查点需要两个坐标："Position" 和 "Forward"。可以使用 Object Inspector 应用按如下方式查找坐标：

检查点将放置在 "Position" 上，并朝向 "Forward" 所指的方向。

检查点的方向非常重要！

从相反方向驶过检查点时不会触发。

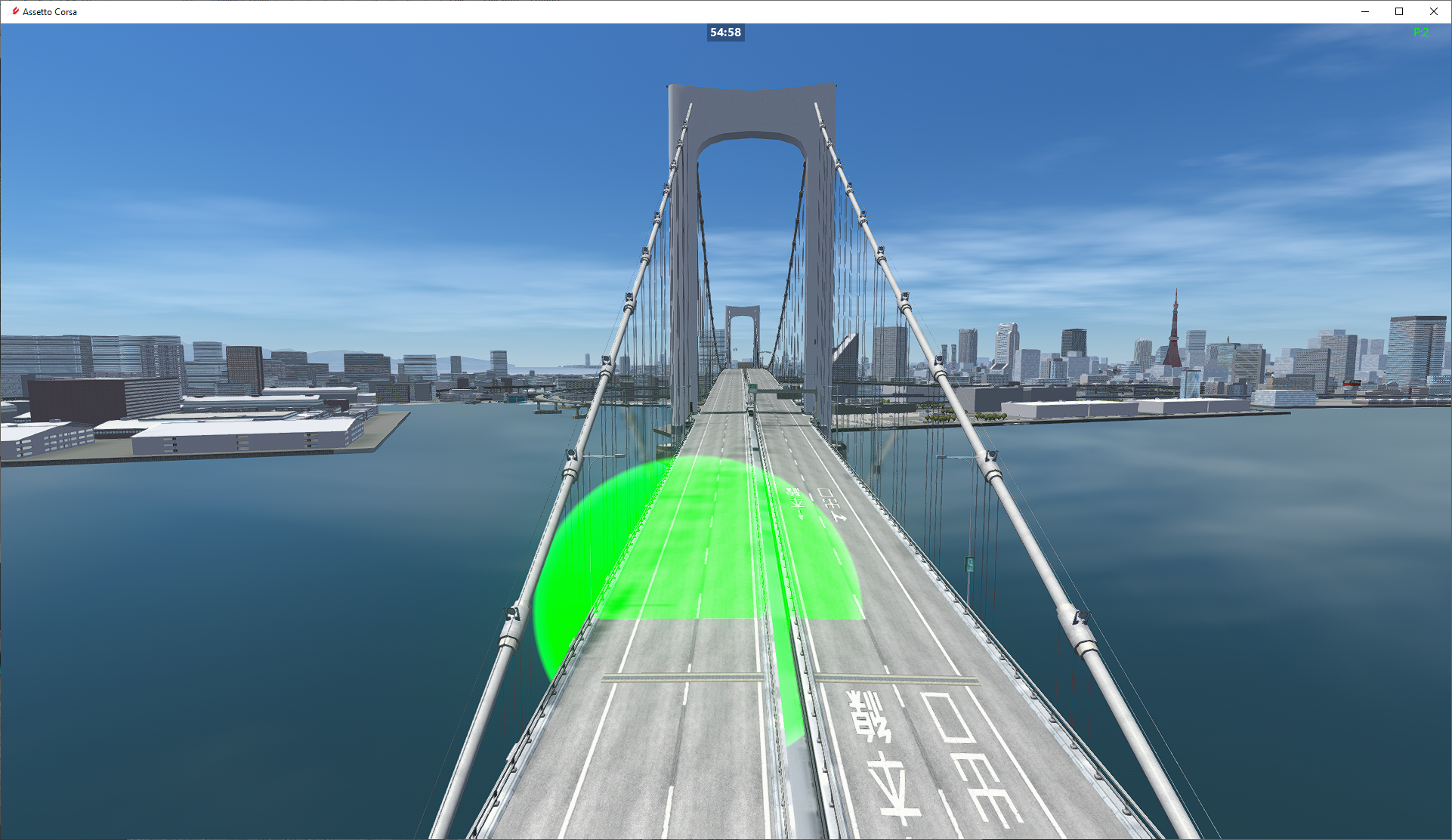

创建检查点后，你可以在计时排行榜上勾选 "Debug checkpoints" 复选框，在游戏内查看它们： 绿色 = 计时区域的起点
蓝色 = 检查点
红色 = 检查点的背面。从该方向驶来时，检查点不会触发

配置​

在 extra_cfg.yml 中启用该插件

extra_cfg.yml
EnablePlugins:
  - PatreonTimingPlugin

SRP 示例配置​

plugin_patreon_timing_cfg.yml
# Name of leaderboard. Use this if you have multiple servers connected to the hub and want them to have different leaderboards.
# For example if you don't want traffic- and non-traffic servers to show on the same leaderboard, just use different
# leaderboard names for them.
LeaderboardName: "Default"
# Number of allowed environment collisions before a lap time is invalidated. Set to -1 for unlimited collisions.
MaxCollisions: -1
# List of timed stages
Stages:
- # Stage name, will be shown on the leaderboard
  Name: "C1 Inner"
  # List of checkpoints
  Checkpoints:
  - # Position of the timing line. Should be in the middle of the track
    Position: {X: 2281.24, Y: 14.56, Z: -9398.49}
    # Forward vector of timing line. Just choose a point that is 1-2m in the direction of travel of the timing line
    Forward: {X: 2280.43, Y: 14.63, Z: -9400.87}
  - Position: {X: 262.46, Y: 3.98, Z: -8509.16}
    Forward: {X: 264.55, Y: 4, Z: -8506.33}
  - Position: {X: 1062.82, Y: 13.89, Z: -5714.83}
    Forward: {X: 1065.31, Y: 13.91, Z: -5714.58}
  # Set to true if start and end point are identical
  ClosedLoop: true
- Name: "C1 Outer"
  Checkpoints:
  - Position: {X: 279.99, Y: 12.04, Z: -5733.97}
    Forward: {X: 277.32, Y: 12.04, Z: -5734.39}
  - Position: {X: -90.54, Y: 9.18, Z: -9275.4}
    Forward: {X: -89.6, Y: 9.18, Z: -9279.57}
  - Position: {X: 2453.62, Y: -2.11, Z: -7902.25}
    Forward: {X: 2452.95, Y: -2.13, Z: -7899.35}
  ClosedLoop: true
- Name: "Belt Inner"
  Checkpoints:
  - Position: {X: 5848.64, Y: 14.34, Z: -6193.65}
    Forward: {X: 5846.08, Y: 14.26, Z: -6196.83}
  - Position: {X: 2954.63, Y: 18.5, Z: -9065.35}
    Forward: {X: 2952.76, Y: 18.49, Z: -9061.68}
  - Position: {X: 3645.8, Y: 20.26, Z: -3388.6}
    Forward: {X: 3648.67, Y: 20.06, Z: -3390.5}
  ClosedLoop: true
- Name: "Belt Outer"
  Checkpoints:
  - Position: {X: 1976.96, Y: 56.32, Z: -3741.04}
    Forward: {X: 1973.16, Y: 56.49, Z: -3742.53}
  - Position: {X: 2554.65, Y: -2.12, Z: -8289.24}
    Forward: {X: 2556.07, Y: -2.1, Z: -8291.99}
  - Position: {X: 6038.22, Y: 22.46, Z: -5540.76}
    Forward: {X: 6038.76, Y: 22.48, Z: -5536.6}
  ClosedLoop: true
- Name: "Mirai Inner"
  Checkpoints:
  - Position: {X: -6718.66, Y: 11.49, Z: 11040.15}
    Forward: {X: -6721.39, Y: 11.43, Z: 11041.99}
  - Position: {X: -11022.51, Y: 13.77, Z: 13900.66}
    Forward: {X: -11022.36, Y: 13.72, Z: 13904.99}
  - Position: {X: -6892.25, Y: 52.93, Z: 15516.16}
    Forward: {X: -6891.25, Y: 53.01, Z: 15514.33}
  - Position: &o0 {X: -6452.59, Y: 11.19, Z: 10895.76}
    Forward: &o1 {X: -6449.85, Y: 11.2, Z: 10894.58}
  ClosedLoop: false
- Name: "Mirai Outer"
  Checkpoints:
  - Position: {X: -6671.69, Y: 18.53, Z: 11174.74}
    Forward: {X: -6669.96, Y: 18.58, Z: 11177.86}
  - Position: {X: -7491.71, Y: 12.62, Z: 16476.26}
    Forward: {X: -7493.4, Y: 12.6, Z: 16474.62}
  - Position: {X: -10436.07, Y: -4.53, Z: 14983.14}
    Forward: {X: -10439.45, Y: -4.53, Z: 14980.74}
  - Position: *o0
    Forward: *o1
  ClosedLoop: false
- Name: "Shinjuku"
  Checkpoints:
  - Position: {X: 93.31, Y: 21.46, Z: -8648.5}
    Forward: {X: 90.59, Y: 21.61, Z: -8649.57}
  - Position: {X: -4249.14, Y: 32.52, Z: -10005.47}
    Forward: {X: -4241.66, Y: -4.18, Z: -9943.17}
  - Position: {X: -468.03, Y: 13.47, Z: -8612.7}
    Forward: {X: -465.19, Y: 13.46, Z: -8613.36}
  ClosedLoop: false
- Name: "Shibuya"
  Checkpoints:
  - Position: {X: -632.57, Y: 24.53, Z: -7167.9}
    Forward: {X: -635.28, Y: 24.4, Z: -7170.08}
  - Position: {X: -4752.27, Y: 34.23, Z: -5842.44}
    Forward: {X: -4759.22, Y: 23.86, Z: -5843.29}
  - Position: {X: -786.26, Y: 31.85, Z: -7138.52}
    Forward: {X: -783.98, Y: 31.77, Z: -7139.99}
  ClosedLoop: false
- Name: "Bayshore Southbound"
  Checkpoints:
  - Position: {X: 2198.53, Y: -4.26, Z: -2316.08}
    Forward: {X: 2194.01, Y: -4.5, Z: -2312.07}
  - Position: {X: 1709.28, Y: -1.21, Z: 3316.72}
    Forward: {X: 1721.17, Y: -1.75, Z: 3323.7}
  - Position: {X: 3831.48, Y: -8.88, Z: 8857.27}
    Forward: {X: 3822.56, Y: -9.1, Z: 8863.96}
  - Position: {X: -6997.31, Y: 47.26, Z: 15726.07}
    Forward: {X: -6999.81, Y: 47.12, Z: 15731.5}
  ClosedLoop: false
- Name: "Bayshore Northbound"
  Checkpoints:
  - Position: {X: -5376.32, Y: 38, Z: 13623.5}
    Forward: {X: -5370.39, Y: 38.02, Z: 13620.5}
  - Position: {X: 3821.08, Y: -8.84, Z: 8841.8}
    Forward: {X: 3832.02, Y: -16.52, Z: 8832.65}
  - Position: {X: 1700.95, Y: -1.16, Z: 3329.1}
    Forward: {X: 1695.08, Y: -0.896, Z: 3325.75}
  - Position: {X: 2190.43, Y: -4.18, Z: -2328.53}
    Forward: {X: 2192.97, Y: -4.04, Z: -2330.82}
  - Position: {X: 5479.73, Y: 12, Z: -4506.1}
    Forward: {X: 5483.61, Y: 11.98, Z: -4507.9}
  ClosedLoop: false
- Name: "Yokohane Southbound"
  Checkpoints:
  - Position: {X: 1047.68, Y: 12.82, Z: -4985.14}
    Forward: {X: 1046.48, Y: 12.82, Z: -4982.37}
  - Position: {X: -295.96, Y: 5.84, Z: 1275.45}
    Forward: {X: -293.55, Y: 5.84, Z: 1277.5}
  - Position: {X: -336.48, Y: 12.3, Z: 6281.81}
    Forward: {X: -336.29, Y: 12.17, Z: 6287.25}
  - Position: {X: -6025.48, Y: 12.82, Z: 10729.98}
    Forward: {X: -6029.04, Y: 12.83, Z: 10731.43}
  ClosedLoop: false
- Name: "Yokohane Northbound"
  Checkpoints:
  - Position: {X: -6028.78, Y: 12.82, Z: 10721.99}
    Forward: {X: -6026.21, Y: 12.81, Z: 10720.99}
  - Position: {X: -348.85, Y: 15.05, Z: 6150.45}
    Forward: {X: -348.88, Y: 15.06, Z: 6146.78}
  - Position: {X: -303.18, Y: 5.84, Z: 1283.01}
    Forward: {X: -305.91, Y: 5.84, Z: 1280.69}
  - Position: {X: 1040.31, Y: 12.83, Z: -4988.62}
    Forward: {X: 1041.19, Y: 12.83, Z: -4990.9}
  ClosedLoop: false
- Name: "Yaesu Northbound"
  Checkpoints:
  - Position: {X: 1455.74, Y: 10.18, Z: -6733.75}
    Forward: {X: 1461.19, Y: 10, Z: -6742.06}
  - Position: {X: 1817.45, Y: 12.79, Z: -8221.92}
    Forward: {X: 1820.93, Y: 12.87, Z: -8228.57}
  - Position: {X: 2663.91, Y: -1.54, Z: -8494.79}
    Forward: {X: 2665.11, Y: -1.54, Z: -8497.18}
  ClosedLoop: false
- Name: "Yaesu Southbound"
  Checkpoints:
  - Position: {X: 2493.15, Y: 12.93, Z: -8155.47}
    Forward: {X: 2486.98, Y: 11.46, Z: -8145.67}
  - Position: {X: 1817.75, Y: 12.8, Z: -8222.51}
    Forward: {X: 1815.6, Y: 12.74, Z: -8218.15}
  - Position: {X: 1383.24, Y: 9.53, Z: -6577.58}
    Forward: {X: 1382.28, Y: 9.52, Z: -6576.13}
  ClosedLoop: false
